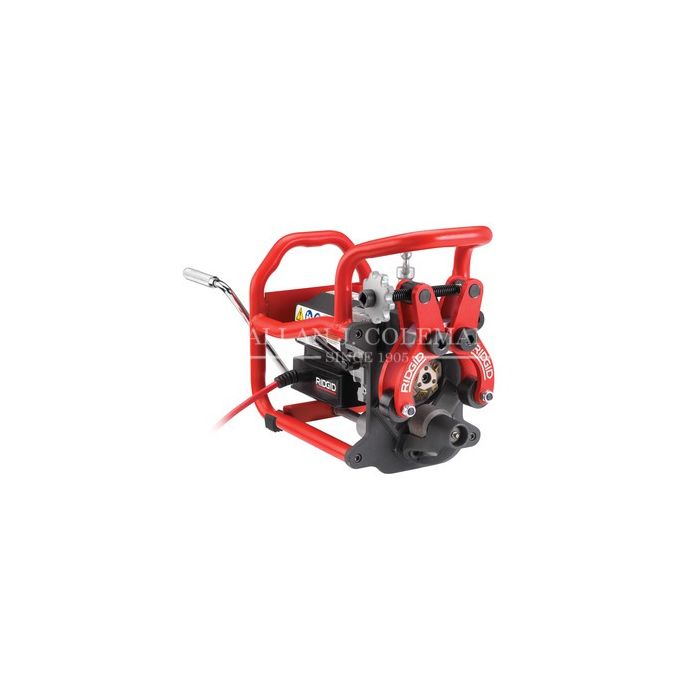

B-500 Transportable Pipe Beveller

In stock
CAT
49298
Portable Pipe Beveller w/37 1/2" Cutter Head
The B-500 Transportable Pipe Beveller produces high quality bevels in less than two minutes* without flames or sparks. The compact design quickly mounts to pipe 4" and up with a maximum wall thickness of 1/2", and creates consistent bevels in a single pass. Pipe is cool to touch immediately following bevelling. Accurate bevel angle around diameter of the pipe allows for optimal number of cover passes. Adjustable land width from 0" to 3/16" to fit welders' requirements. Produces a machined finish due to 6 replaceable cutter inserts working simultaneously. Fast to set-up and operate. Patent-pending clamp system firmly secures tool to the pipe. Speed monitoring with LED indicators for optimal cutter performance. Standard Equipment: Manual Crank Handle, 37 1/2" Cutter Head, 6 - 4 Edges Inserts, Torque Driver, and Screws.
More Information
Unit Length 15.8 in. / 401 mm
Unit Height 13.3 in. / 338 mm
Unit Weight 56.5 lb. / 24.0 kg
Unit Width 11.5 in. / 292 mm
Capacity 4" and larger
Power Source Universal Single Phase Motor
