535A 120V 60HZ w/816/817 DH

$8,584.90 $8,584.90 To see product price, add this item to your cart. You can always remove it later.
Out of stock

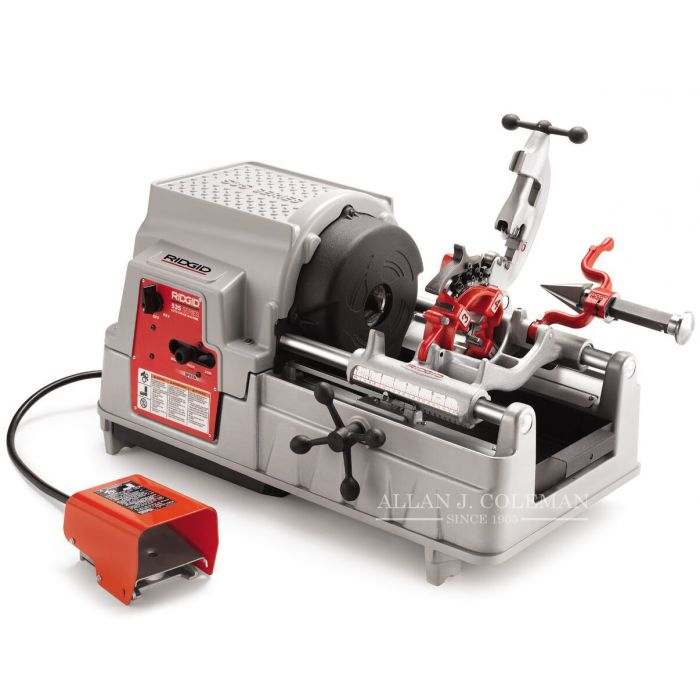

535A 1/2"-2" NPT Automatic Machine with 816/817 Die Head
Maintains the ruggedness of the industry workhouse while adding features that make the threading opertaion more productive. A large chip tray and oil reservoir make the 535A ideal for longer uninterrupted threading. The 535 features a high clearance carriage that makes the threading operation easier and a generous top cover area that is ideal for keeping tools and work related materials handy. The 535A is designed around maximum uptime with the upgrades that matter most to the pipe working professional. Automatic chuck. Can be used with geared threader Model 141. Uses Model 816/817 semi-automatic, Model 815A self opening or Model 811A quick-opening die heads. Length gauge for quick, accurate cut-off. Standard Equipment: 11931 - Thread Cutting Oil; 97065 - NPT Die Head Quick-Open RH; 47765 - 1/2"-3/4" High Speed Dies; 47770 - 1"-2" High Speed Dies; 42365 - Reamer; 42390 - Wheel-Type Cutter; 41185 - Wheel, Cutter E1032; 46015 - Hex Key 5/32; 46030 - Hek Key 3/16.
More Information
Unit Weight 360 lb. / 163 kg
Voltage 115V
Pipe Capacity 1/8 - 2 in. / 3 - 50 mm
Power Source 2 HP Single-Phase Motor
Spindle Speed 3 Speed 16/46/58 RPM
